How it works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

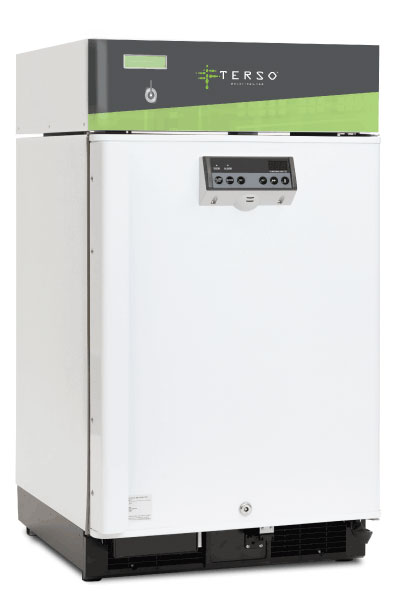

Once the desired items are properly tagged and placed in the Compact RFID Refrigerator, pre-authorized users can access the enclosure by placing their badge to the pass reader.

Accessing RFID enclosure for inventory management
2 Real-time Tracking

Once the door to the Compact RFID Refrigerator is securely shut a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time, recording who took the product and when.

real time tracking
3 Jetstream

This recorded, encrypted transaction is then transferred via Jetstream, our cloud-based platform which can be easily integrated into your existing ERP systems and inventory management workflows. And if you don’t have an inventory management software, we’ve got Stratosphere on deck to help with that, too.

Software for RFID Inventory Management for Medical Device Manufacturers.
Application

One technology. Many applications.

Be it product or place, the Compact RFID Refrigerator has a multitude of uses.

Specs

Model number: TS029

Component

External Dimensions:  US: 42”H x 24”W x 26”D | EU: 1067 H x 610 W x 660 D (mm)

Internal Dimensions:  US: 28”H x 21”W x 18”D | EU: 711 H x 533 W x 457 D (mm)

External Space Required:  US: 42”H x 24”W x 47”D | EU: 1067 H x 610 W x 1194 D (mm)

  • Place 3” (76 mm) from back wall
  • Allow 21” (534 mm) for door clearance

Volume: 5.5 ft3 (156 L)

Weight 165 lbs (75 kg)

Cooling Method: Forced air circulation

Access Control:  LF badge

Optional Riser:  US: 23”H x 22”W x 24”D | EU: 584 H x 559 W x 607 D (mm)

 Communications

RAIN RFID Frequency:  US: 902 to 928 MHz | EU: 864 to 868 MHz

Ethernet, optional cellular or WiFi

Power

Electrical Power:  US: 120 VAC, 60 Hz, 2 A | EU: 230 VAC, 50 Hz, 1 A

Power Consumption: 160 W max

Battery Backup: Up to 2hrs

Temperature

2°C to 8°C

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

Location Use
Downloads

One technology. Many applications.

Be it product or place, the Compact RFID Refrigerator has a multitude of uses.

Model number: TS029

Component

External Dimensions:  US: 42”H x 24”W x 26”D | EU: 1067 H x 610 W x 660 D (mm)

Internal Dimensions:  US: 28”H x 21”W x 18”D | EU: 711 H x 533 W x 457 D (mm)

External Space Required:  US: 42”H x 24”W x 47”D | EU: 1067 H x 610 W x 1194 D (mm)

  • Place 3” (76 mm) from back wall
  • Allow 21” (534 mm) for door clearance

Volume: 5.5 ft3 (156 L)

Weight 165 lbs (75 kg)

Cooling Method: Forced air circulation

Access Control:  LF badge

Optional Riser:  US: 23”H x 22”W x 24”D | EU: 584 H x 559 W x 607 D (mm)

 Communications

RAIN RFID Frequency:  US: 902 to 928 MHz | EU: 864 to 868 MHz

Ethernet, optional cellular or WiFi

Power

Electrical Power:  US: 120 VAC, 60 Hz, 2 A | EU: 230 VAC, 50 Hz, 1 A

Power Consumption: 160 W max

Battery Backup: Up to 2hrs

Temperature

2°C to 8°C

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

BACK TO BASICS
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
OUR SOFTWARE
Seamless Integration with Jetstream

So, you know what device your workflow requires. Great! But how will the Compact RFID Refrigerator be able to communicate essential inventory information to end users. Well we;re glad you asked. With software. But not just any software, Jetstream, the simplest cloud-based platform for managing inventory. Jetstream allows for security and scalability to enable visibility of high-value inventory from anywhere at anytime possible.
