Application

One technology. Many applications.

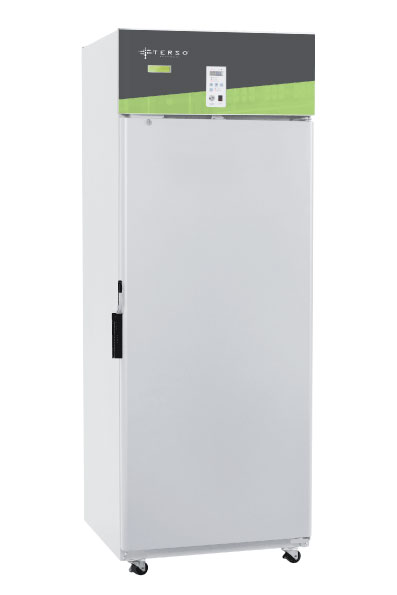

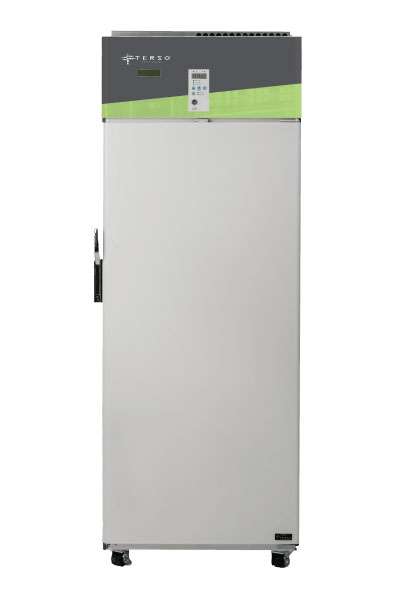

Be it product or place, the Large RFID Freezer has a multitude of uses.

  • Reagents
  • Bio-samples
  • Pharmaceuticals
  • Cardiovascular products
  • Orthopedic supplies
  • Adhesives
Specs

Component

External Dimensions: 80”H x 31”W x 33”D

Internal Dimensions: 58.3”H x 24.8”W x 24.3”D

External Space Required: 88”H x 31”W x 67”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 20.2 ft3

Weight: 470 lbs

Cooling Method: Forced air circulation

Access Control: LF badge

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency: 902 to 928 MHz

Power

Electrical Power: 208 VAC, 60 Hz, 5 A

Power Consumption: 990W max

Battery Backup: Up to 2hrs

Temperature

-30°C to -15°C

Location Use
  • Hospitals
  • Research labs
  • Tissue storage facilities
  • Pharmacies
  • Biobanks
  • Crime labs
  • Stockrooms
  • Aerospace
Downloads

One technology. Many applications.

Be it product or place, the Large RFID Freezer has a multitude of uses.

  • Reagents
  • Bio-samples
  • Pharmaceuticals
  • Cardiovascular products
  • Orthopedic supplies
  • Adhesives

Component

External Dimensions: 80”H x 31”W x 33”D

Internal Dimensions: 58.3”H x 24.8”W x 24.3”D

External Space Required: 88”H x 31”W x 67”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 20.2 ft3

Weight: 470 lbs

Cooling Method: Forced air circulation

Access Control: LF badge

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency: 902 to 928 MHz

Power

Electrical Power: 208 VAC, 60 Hz, 5 A

Power Consumption: 990W max

Battery Backup: Up to 2hrs

Temperature

-30°C to -15°C

  • Hospitals
  • Research labs
  • Tissue storage facilities
  • Pharmacies
  • Biobanks
  • Crime labs
  • Stockrooms
  • Aerospace
Roll of UHF RFID tags
Roll of UHF RFID tags
BACK TO BASICS
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
OUR SOFTWARE
Seamless Integration with Jetstream

Without a software platform, the Large RFID Freezer would not be able to communicate essential inventory information to end users. But don’t worry, we’ve got you covered. Jetstream, the simplest open-API, cloud-based platform for managing inventory allows for security and scalability so that staying connected to high-value inventory from anywhere at anytime is possible. So you can know now.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
How it Works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

Once the desired items are properly tagged and placed in the Large RFID Freezer, pre-authorized users can access the enclosure by placing their badge to the pass reader.

RFID stacked tags
2 Real-time Tracking

Once the door to the Large RFID Freezer is securely shut a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time, recording who took the product and when.

Accessing RFID enclosure for inventory management
3 Jetstream

This recorded encrypted transaction is then transferred via Jetstream, our open API cloud-based platform which can be easily integrated into your existing ERPs and inventory management workflows.

Jetstream is a secure platform that allows integration from your software to Terso's RAIN RFID sensors
Doctor in OR hospital inventory management
Doctor in OR hospital inventory management
Case Study
Froedtert Hospital Finds Its Fix

Froedtert Hospital, in Milwaukee, WI, was looking to integrate an automated inventory management system to protect valuable tissues, implants and organs. With our RAIN-RFID enclosures and TrackCore Inc.’s inventory tracking software, Froedtert Hospital was able to eliminate manual tracking errors and achieve real-time inventory visibility.
