How it works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

Once the desired items are properly tagged and placed in the Under Counter ULT RFID Freezer, pre-authorized users can access the enclosure by placing their badge to the pass reader.

Accessing RFID enclosure for inventory management

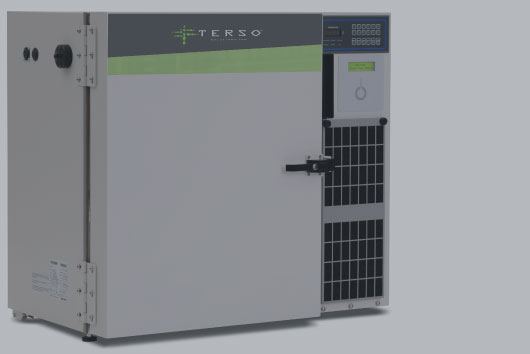

2 Real-time Tracking

Securely shut the door to the Under Counter ULT RFID Freezer to ensure a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time, recording who took the product and when.

3 Jetstream

This recorded encrypted transaction is then transferred via Jetstream, our cloud-based platform which can be easily integrated into your existing ERP systems. Need an inventory management software of your own to access all that valuable information? That’s why we have Stratosphere, the perfect end-to-end inventory management software solution.

RFID Software for Inventory Management for Medical Device Manufacturers.
Applications

One technology. Many applications

Be it product or place, the Under Counter ULT RFID Freezer has a multitude of uses.

Specs

Model number: TS079

Component

External Dimensions:  US: 32.7”H x 35.4”W x 25”D

Internal Dimensions:  US: 25.2”H x 18.9”W x 13”D

External Space Required:  US: 32.7”H x 40”W x 50”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 3.6 ft3

Weight: 265 lbs

Cooling Method: 2-stage cascade system

Access Control: LF badge

Communication

Ethernet, optional cellular or WiFi

RAIN RFID Frequency:  US: 902 to 928 MHz

Power

Electrical Power: 120 VAC, 60 Hz, 5 A

Power Consumption: 367 W max

Battery Backup: Up to 2 hrs

Temperature

-86°C to -50°C

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

Location Use
Downloads

One technology. Many applications

Be it product or place, the Under Counter ULT RFID Freezer has a multitude of uses.

Model number: TS079

Component

External Dimensions:  US: 32.7”H x 35.4”W x 25”D

Internal Dimensions:  US: 25.2”H x 18.9”W x 13”D

External Space Required:  US: 32.7”H x 40”W x 50”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 3.6 ft3

Weight: 265 lbs

Cooling Method: 2-stage cascade system

Access Control: LF badge

Communication

Ethernet, optional cellular or WiFi

RAIN RFID Frequency:  US: 902 to 928 MHz

Power

Electrical Power: 120 VAC, 60 Hz, 5 A

Power Consumption: 367 W max

Battery Backup: Up to 2 hrs

Temperature

-86°C to -50°C

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

Terso RFID circular tags for healthcare and life science inventory
Terso RFID circular tags for healthcare and life science inventory
BACK TO BASICS
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
OUR SOFTWARE
Seamless Integration with Jetstream

The Under Counter ULT RFID Freezer would not be able to communicate essential inventory information to end users without a software platform, which is why we developed Jetstream with security and scalability in mind. Jetstream is the simplest cloud-based platform for managing inventory so that staying connected to RFID tagged items from anywhere at anytime is possible.
