A little bit cabinet, a little bit RFID

How does a 2-bin Kanban System Work?

1 It’s all in the name.

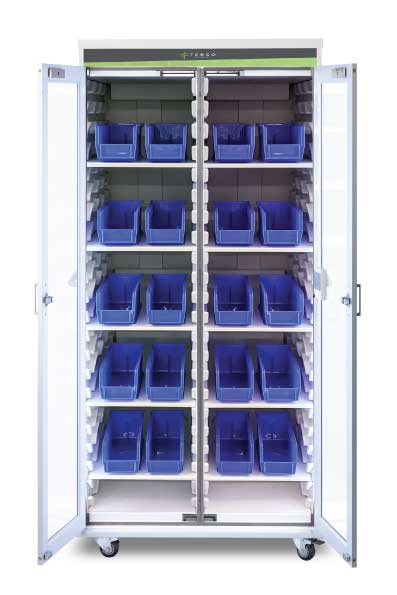

The system is comprised of two bins with the same inventory item.

Two bins within the cabinet allow you to keep inventory items secure
2 Tag the Bins

Both bins are tagged with an RFID EPC.

Tagged bins help you to keep track of everyday consumables that you don't want to tag individually
3 Start Accessing Inventory

Approved hospital staff take inventory from the first bin until it is empty.

Access Pass allow you to lock up inventory that you want to keep safe
4 Remove and track

Remove the empty bin and place it on the RFID Surface Read Point, which then alerts the appropriate individual that replenishment of that particular inventory item is needed.

To track the items that have been used, place the 2-bin kanban bin on the RFID Surface Read Point
5 Don't Worry

While that item is being restocked, there is enough on-hand in the second bin to accommodate inventory needs.

The Kanban Security Cabinet can track masks, gloves, and other consumables
Applications
  • Gowns/aprons
  • Masks
  • Swabs
  • Gloves
  • Testing kits
  • Antibiotics
  • Face shields
  • Respirators
  • Goggles
  • Ventilator circuits
Specs

Model number: TS095

Component

External Dimensions:

Large Secured Access Cabinet- US: 80”H x 36”W x 26”D | EU: 2032 H x 914 W x 660 D (mm)

RFID Surface Read Point- US: 1.4”H x 25.8”W x 21.5”D |EU:  36 H x 655 W x 546 D (mm)

Internal Dimensions:

Large Secured Access Cabinet- US: 65”H x 14”W x 24”D for each side |EU: 1651 H x 356 W x 610 D (mm) for each side

External Space Required:

Large Secured Access Cabinet – 80”H x 41”W x 50”D

Place 3” (76 mm) from back wall

Allow 21” (534 mm) for door clearance

Volume:  25 ft3 (717 L)

Large Secured Access Cabinet-

Weight:

Large Secured Access Cabinet- 265lbs (120 kg)

RFID Surface Read Point- 18 lbs (8 kg)

Access Control:

Large Secured Access Cabinet- LF badge

Items Weight (max):

Large Secured Access Cabinet- 40lbs per shelf (18 kg)

RFID Surface Read Point- 40 lbs (18 kg)

Surface Material

RFID Surface Read Point- ABS Plastic

Installation Cart Mounting

RFID Surface Read Point- Cable ties to secure a 24” (610 mm) rack

Desktop

RFID Surface Read Point- Optional feet for setting on hard surfaces

RAIN RFID Frequency:

Large Secured Access Cabinet and RFID Surface Read Point – US: 902 to 928 MHz | EU: 864 to 868 MHz

Communications

Large Secured Access Cabinet – Ethernet, optional

cellular or WiFi

RFID Surface Read Point – Ethernet (LAN)

RFID Read Area:

RFID Surface Read Point- Adjustable from ~6” to 2’

Power

Electrical Power:

Large Secured Access Cabinet – 120VAC, 60Hz, 1A

RFID Surface Read Point- PoE 802.3af or 12VDC

Power Consumption:

Large Secured Access Cabinet- 84W

RFID Surface Read Point- 10W max

Battery Backup:

Large Secured Access Cabinet – Up to 1hr

RFID Power:  PoE 802.3 af

RFID Surface Read Point- .25W

Accessories:

RFID Surface Read Point – Power over Ethernet Injector (optional); DC power supply (optional)

Certification: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

Location use
  • Hospitals
  • Research Labs
  • Pharmacies
  • Dental Offices
  • Stockroom
  • Government Agencies
  • Aerospace
  • Consignment inventory
Downloads
  • Gowns/aprons
  • Masks
  • Swabs
  • Gloves
  • Testing kits
  • Antibiotics
  • Face shields
  • Respirators
  • Goggles
  • Ventilator circuits

Model number: TS095

Component

External Dimensions:

Large Secured Access Cabinet- US: 80”H x 36”W x 26”D | EU: 2032 H x 914 W x 660 D (mm)

RFID Surface Read Point- US: 1.4”H x 25.8”W x 21.5”D |EU:  36 H x 655 W x 546 D (mm)

Internal Dimensions:

Large Secured Access Cabinet- US: 65”H x 14”W x 24”D for each side |EU: 1651 H x 356 W x 610 D (mm) for each side

External Space Required:

Large Secured Access Cabinet – 80”H x 41”W x 50”D

Place 3” (76 mm) from back wall

Allow 21” (534 mm) for door clearance

Volume:  25 ft3 (717 L)

Large Secured Access Cabinet-

Weight:

Large Secured Access Cabinet- 265lbs (120 kg)

RFID Surface Read Point- 18 lbs (8 kg)

Access Control:

Large Secured Access Cabinet- LF badge

Items Weight (max):

Large Secured Access Cabinet- 40lbs per shelf (18 kg)

RFID Surface Read Point- 40 lbs (18 kg)

Surface Material

RFID Surface Read Point- ABS Plastic

Installation Cart Mounting

RFID Surface Read Point- Cable ties to secure a 24” (610 mm) rack

Desktop

RFID Surface Read Point- Optional feet for setting on hard surfaces

RAIN RFID Frequency:

Large Secured Access Cabinet and RFID Surface Read Point – US: 902 to 928 MHz | EU: 864 to 868 MHz

Communications

Large Secured Access Cabinet – Ethernet, optional

cellular or WiFi

RFID Surface Read Point – Ethernet (LAN)

RFID Read Area:

RFID Surface Read Point- Adjustable from ~6” to 2’

Power

Electrical Power:

Large Secured Access Cabinet – 120VAC, 60Hz, 1A

RFID Surface Read Point- PoE 802.3af or 12VDC

Power Consumption:

Large Secured Access Cabinet- 84W

RFID Surface Read Point- 10W max

Battery Backup:

Large Secured Access Cabinet – Up to 1hr

RFID Power:  PoE 802.3 af

RFID Surface Read Point- .25W

Accessories:

RFID Surface Read Point – Power over Ethernet Injector (optional); DC power supply (optional)

Certification: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

  • Hospitals
  • Research Labs
  • Pharmacies
  • Dental Offices
  • Stockroom
  • Government Agencies
  • Aerospace
  • Consignment inventory
Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
When you want to know now
There’s Jetstream

Innovation meets integration with Jetstream, our open-API cloud-based platform that connects devices powered by Terso Solutions to your existing inventory management software. This integration allows you to see in real-time who accessed the cabinet and if one of the bins inside of the cabinet has been placed on the RFID Surface Read Point, indicating that it needs to be replenished.
