How it Works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

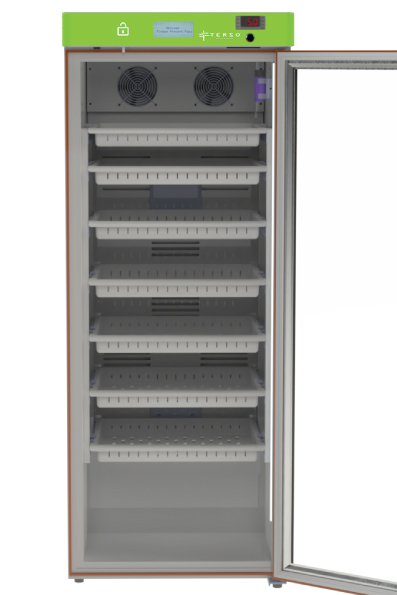

After placing the necessary RFID tagged inventory items in the Midsize RFID Refrigerator, pre-authorized users can access the enclosure by placing their access pass to the pass reader.

Accessing RFID enclosure for inventory management
2 Real-time Tracking

Each time the door to the enclosure is securely shut a scan of the inventory is performed. Whether  an item is removed or added, the system automatically tracks the transaction in real-time.

real time inventory tracking
3 Jetstream

This recorded transaction is then accessible via our cloud-based platform which can be easily integrated into existing ERP systems. Don’t have an inventory management platform of your own? No sweat. We got the one just for you. Check out Stratosphere and take your inventory to new heights.

Software for RFID Inventory Management for Medical Device Manufacturers.
Applications

One technology. Many applications.

Be it product or place, the Midsize RFID Refrigerator has a multitude of uses.

  • Pharmaceuticals
  • Reagent storage
  • Tissue & biologics
  • Cardiovascular products
  • Orthopedic products
Specs

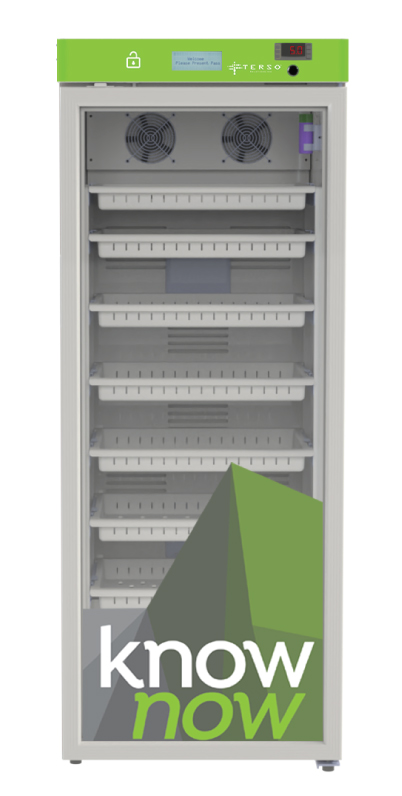

Model number: TS099

Feature

External dimensions (H x W x D):  US: 60.0 in. x 26.5 in. x 23.8 in.

Internal dimensions (H x W x D):  US: 53.0 in. x 20.0 in. x 18.0 in.

External clearance (H x W x D): 60.0 in. x 28.0 in. x 30.0 in.

Volume: 10.5 ft3

Weight: 200 lbs

Operating temperature range: +1.0 °C to +10.0 °C

Temperature uniformity: +/- 1.5 °C

Door: Glass door, right hand hinge

Security device: Electronic door latch

Access control: LF/HF access pass

Refrigerant: R600a (SNAP)

Cooling method: Forced air circulation

Defrost type: Automatic

Communications

RFID frequencies:  US: 902 to 928 MHz

Connection: Ethernet, optional cellular

Electrical Requirements

Electrical power & frequency: 115 VAC, 60 Hz, 3 A

Power consumption: 2.5 kWh/day

RFID battery backup: 12 VDC SLA, qty 2

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS,  Energy Star, RoHS

Disclaimer: If you are outside of the US, contact us for your regions’ specifications

*Specifications subject to change without notice

Location Use
Downloads

One technology. Many applications.

Be it product or place, the Midsize RFID Refrigerator has a multitude of uses.

  • Pharmaceuticals
  • Reagent storage
  • Tissue & biologics
  • Cardiovascular products
  • Orthopedic products

Model number: TS099

Feature

External dimensions (H x W x D):  US: 60.0 in. x 26.5 in. x 23.8 in.

Internal dimensions (H x W x D):  US: 53.0 in. x 20.0 in. x 18.0 in.

External clearance (H x W x D): 60.0 in. x 28.0 in. x 30.0 in.

Volume: 10.5 ft3

Weight: 200 lbs

Operating temperature range: +1.0 °C to +10.0 °C

Temperature uniformity: +/- 1.5 °C

Door: Glass door, right hand hinge

Security device: Electronic door latch

Access control: LF/HF access pass

Refrigerant: R600a (SNAP)

Cooling method: Forced air circulation

Defrost type: Automatic

Communications

RFID frequencies:  US: 902 to 928 MHz

Connection: Ethernet, optional cellular

Electrical Requirements

Electrical power & frequency: 115 VAC, 60 Hz, 3 A

Power consumption: 2.5 kWh/day

RFID battery backup: 12 VDC SLA, qty 2

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS,  Energy Star, RoHS

Disclaimer: If you are outside of the US, contact us for your regions’ specifications

*Specifications subject to change without notice

Avery Dennison RFID tage used by Terso Solutions
Avery Dennison RFID tage used by Terso Solutions
Back to Basics
UHF RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Terso Solutions uses RAIN RFID technology to implement inventory management solutions for hospitals and laboratories
