Applications

One technology. Many applications.

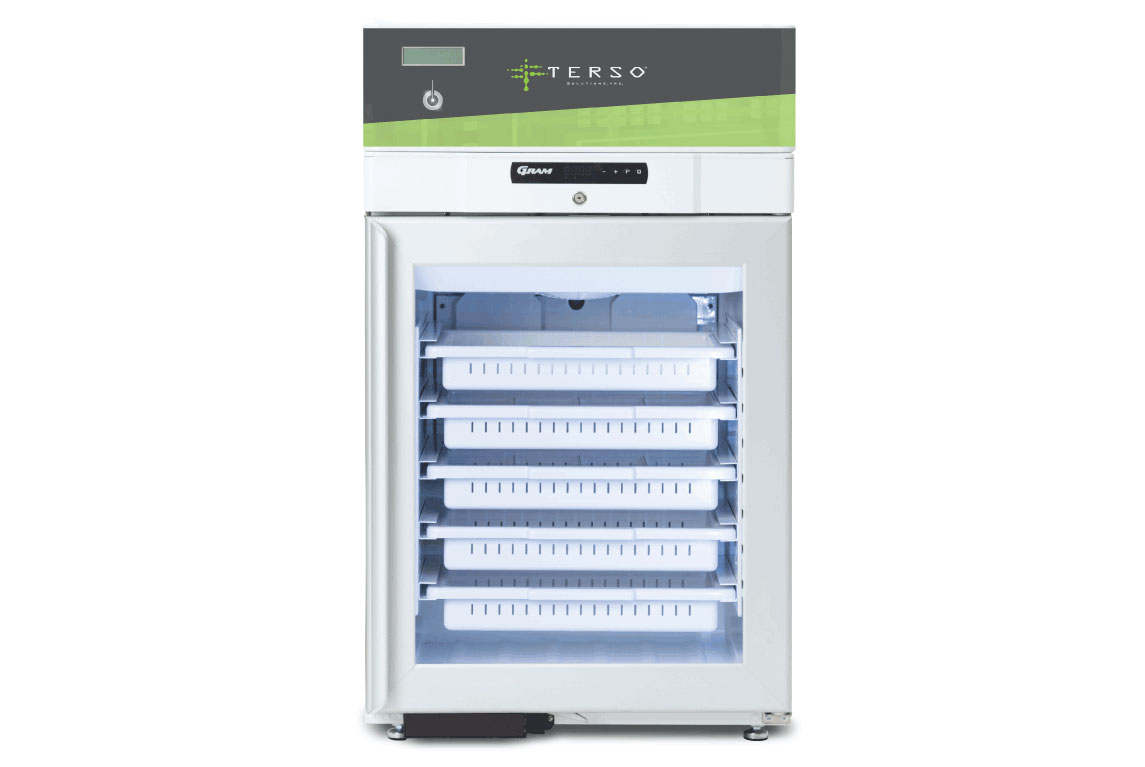

Be it product or place, the Compact International RFID Refrigerator has a multitude of uses.

  • Reagents
  • Implants
  • Tissue and biologics
  • Cardiovascular products
  • Orthopedic products
  • Pharmaceuticals
Specs

Components

External Dimensions: 1010 H x 595 W x 620 D (mm)

Internal Dimensions: 618 H x 492 W x 415 D (mm)

External Space Required: 1010 H x 595 W x 1270 D (mm)

  • Place 76 mm from back wall
  • Allow 534 mm for door clearance

Volume: 104 L

Weight: 75 kg

Cooling Method: Forced air circulation

Access Control: LF badge

Optional Riser: 584 H x 559 W x 610 D (mm)

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency: 864 to 868 MHz

Power

Electrical Power : 230 VAC, 50 Hz, 2 A

Power Consumption: 84 W max

Battery Backup: Up to 2 hrs

Temperature

2°C to 12°C

Location Use
  • Hospitals
  • Stockrooms
  • Research labs
  • Pharmacies
  • Aerospace
Downloads

One technology. Many applications.

Be it product or place, the Compact International RFID Refrigerator has a multitude of uses.

  • Reagents
  • Implants
  • Tissue and biologics
  • Cardiovascular products
  • Orthopedic products
  • Pharmaceuticals

Components

External Dimensions: 1010 H x 595 W x 620 D (mm)

Internal Dimensions: 618 H x 492 W x 415 D (mm)

External Space Required: 1010 H x 595 W x 1270 D (mm)

  • Place 76 mm from back wall
  • Allow 534 mm for door clearance

Volume: 104 L

Weight: 75 kg

Cooling Method: Forced air circulation

Access Control: LF badge

Optional Riser: 584 H x 559 W x 610 D (mm)

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency: 864 to 868 MHz

Power

Electrical Power : 230 VAC, 50 Hz, 2 A

Power Consumption: 84 W max

Battery Backup: Up to 2 hrs

Temperature

2°C to 12°C

  • Hospitals
  • Stockrooms
  • Research labs
  • Pharmacies
  • Aerospace
Compact International RFID Freezer for inventory management in healthcare and life science
Across the pond & beyond?
This is the RFID solution for you.

Inventory management is universal, but it doesn’t have to be universally complicated or time consuming. Protecting products through secure access, ensuring product integrity with a temperature range of  2°C to 12°C, and customizing product layout so that your inventory works for you- it’s all possible with the Compact International RFID Refrigerator.



Compact International RFID Freezer for inventory management in healthcare and life science
Roll of UHF RFID tags
Roll of UHF RFID tags
BACK TO BASICS
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
OUR SOFTWARE
Seamless Integration with Jetstream

Without a software platform, the Compact International RFID Refrigerator would not be able to communicate essential inventory information to end users. But don’t worry, we’ve got you covered. Jetstream, the simplest open-API, cloud-based platform for managing inventory allows for security and scalability so that staying connected to high-value inventory from anywhere at anytime is possible. So you can know now.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
How it works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

Once the desired items are properly tagged and placed in the Compact International RFID International Refrigerator, pre-authorized users can access the enclosure by placing their badge to the pass reader.

RFID stacked tags
2 Real-time Tracking

Securely shut the door to the Compact International RFID Refrigerator a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time.

Accessing RFID enclosure for inventory management
3 Jetstream

This recorded transaction is then accessible via Jetstream, our open API cloud-based platform which can be easily integrated into existing ERPs and inventory management workflows.

Jetstream is a secure platform that allows integration from your software to Terso's RAIN RFID sensors
