HOW IT WORKS

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

Once the desired items are properly tagged and placed in the Compact RFID Cabinet, pre-authorized users can access the enclosure by placing their badge to the pass reader.

Accessing RFID enclosure for inventory management
2 Real-time Tracking

Ensure the door to the Compact RFID Cabinet is securely shut so that a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time, recording who took the product and when.

RFID stacked tags
3 Jetstream

This recorded encrypted transaction is then transferred via Jetstream, our flexible cloud-based platform which can be easily integrated into your ERP systems. Need an inventory management software as well? Don’t panic. Check out Stratosphere.

RFID Software for Inventory Management for Medical Device Manufacturers.
APPLICATION

One technology. Many applications.

Be it product or place, the Compact RFID Cabinet has a multitude of uses.

  • Biologics
  • Reagents
  • High-value bio samples
  • Class II pharmaceuticals
  • Cardiovascular products
  • Orthopedic supplies
  • Hazardous materials
  • Implants
  • Chemicals
SPECS

US model number: TS032

OUS model number: TS035

Component

External Dimensions:  US: 44”H x 24”W x 24”D | EU: 1118 H x 610 W x 610 D (mm)

Internal Dimensions:  US: 33”H x 23”W x 18”D | EU: 838 H x 584 W x 457 D (mm)

External Space Required:  US: 44”H x 24”W x 48”D | EU: 1118 H x 610 W x 1219 D (mm)

  • Place 3” (76mm) from back wall
  • Allow 21” (534mm) for door clearance

Volume: 7.9 ft3 (224 L)

Weight: 200 lbs (91 kg)

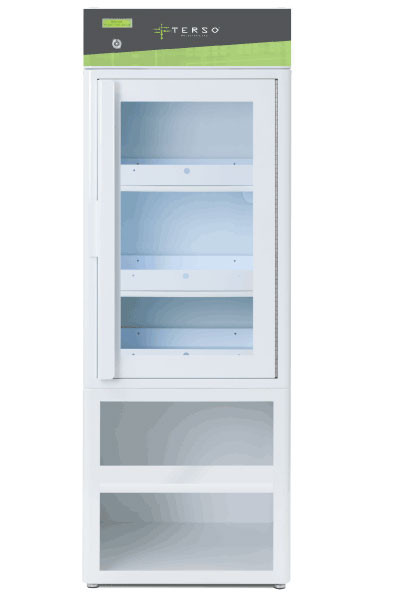

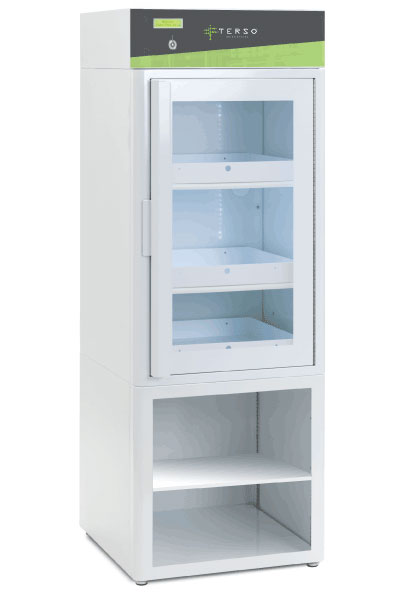

Optional Riser:  US: 23”H x 22”W x 24”D | EU: 600 H x 559 W x 616 D (mm)

Access Control: LF badge

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency:  US: 902 to 928 MHz  | EU: 864 to 868 MHz

Power

Electrical Power:  US: 120 VAC, 60 Hz, 1 A | EU: 240 VAC, 50 Hz, 1 A

Power Consumption: 84 W max

Battery Backup: Up to 2 hrs

Warranty:

Lease: US – 36 months | EU – 36 months

Purchase: US – 36 months | EU – 36 months

Certifications: RAIN, SGS, CE, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

LOCATION USE
DOWNLOADS

One technology. Many applications.

Be it product or place, the Compact RFID Cabinet has a multitude of uses.

  • Biologics
  • Reagents
  • High-value bio samples
  • Class II pharmaceuticals
  • Cardiovascular products
  • Orthopedic supplies
  • Hazardous materials
  • Implants
  • Chemicals

US model number: TS032

OUS model number: TS035

Component

External Dimensions:  US: 44”H x 24”W x 24”D | EU: 1118 H x 610 W x 610 D (mm)

Internal Dimensions:  US: 33”H x 23”W x 18”D | EU: 838 H x 584 W x 457 D (mm)

External Space Required:  US: 44”H x 24”W x 48”D | EU: 1118 H x 610 W x 1219 D (mm)

  • Place 3” (76mm) from back wall
  • Allow 21” (534mm) for door clearance

Volume: 7.9 ft3 (224 L)

Weight: 200 lbs (91 kg)

Optional Riser:  US: 23”H x 22”W x 24”D | EU: 600 H x 559 W x 616 D (mm)

Access Control: LF badge

Communications

Ethernet, optional cellular or WiFi

RAIN RFID Frequency:  US: 902 to 928 MHz  | EU: 864 to 868 MHz

Power

Electrical Power:  US: 120 VAC, 60 Hz, 1 A | EU: 240 VAC, 50 Hz, 1 A

Power Consumption: 84 W max

Battery Backup: Up to 2 hrs

Warranty:

Lease: US – 36 months | EU – 36 months

Purchase: US – 36 months | EU – 36 months

Certifications: RAIN, SGS, CE, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications

Terso RFID tag to adhere to healthcare or life science inventory products
Terso RFID tag to adhere to healthcare or life science inventory products
Back to basics
RAIN RFID & Our Process

We want to enable you to make an informed decision when determining the best solution for your inventory and that starts with gaining an understanding of the technology we offer. With the highest read range compared to both LF and HF RFID tags, RAIN RFID, or Ultra-High Frequency Radio Frequency Identification technology, is the leading solution for tracking a high quantity of products. Our process is another part weighing in on your decision. All of our partner’s needs are different and we are at the ready to support in any way that we can. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology. Think of us as an extension of your team.

Terso Solutions uses RAIN RFID technology to implement inventory management solutions for hospitals and laboratories

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
Our Software
Seamless Integration with Jetstream

No software, no RFID inventory management solution. That may be alarming, but it’s true. Without a software platform, the Compact RFID Cabinet would not be able to communicate essential inventory information to end users. But don’t worry, we’ve got you covered. Jetstream was built to be the simplest cloud-based platform for managing inventory. It allows for security and flexibility so that staying connected to high-value inventory from anywhere at anytime is possible.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
RAIN RFID for dental implant inventory management by Terso Solutions. Terso Solutions helps doctors efficiently manage and save money in dental clinics
RAIN RFID for dental implant inventory management by Terso Solutions. Terso Solutions helps doctors efficiently manage and save money in dental clinics
CASE STUDY
Straumann Eliminates Supply Chain Management Stress

Straumann, the leading provider of solutions in implant dentistry and dental tissue regeneration, struggled with stock-outs and data discrepancies in customer accounts due to manual supply chain management. Through the integration of our Large and Compact RFID Cabinets, Straumann was able to eliminate these risks and provide value to their business, staff, and customers.
