How it Works

Comprehensive Inventory Management in 3 Simple Steps

1 Secure Access

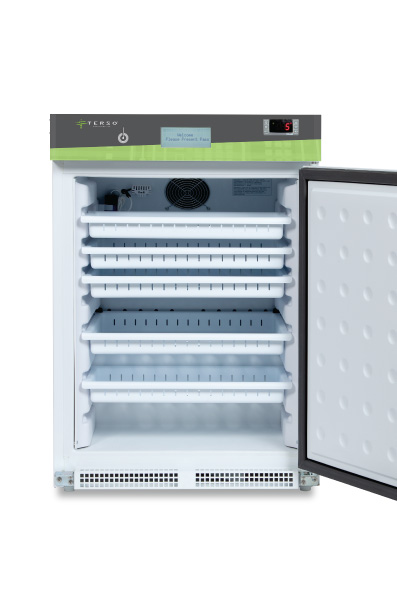

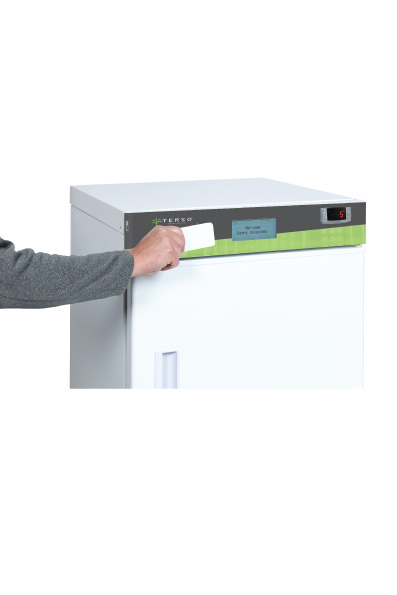

Once the desired items are properly tagged and placed in the Undercounter RFID Refrigerator, pre-authorized users can access the enclosure by placing their access pass to the pass reader.

2 Real-time Tracking

Once the door to the Under Counter RFID Refrigerator is securely shut, a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time, recording who took the product and when.

real time inventory tracking
3 Jetstream

This recorded, encrypted transaction is then transferred via Jetstream, our cloud-based platform which can be easily integrated into your existing ERP systems and inventory management workflows. And if you don’t have an inventory management software, we’ve got Stratosphere on deck to help with that, too.

RFID Software for Inventory Management for Medical Device Manufacturers.
Application

One technology. Many applications.

Be it product or place, the Undercounter RFID Refrigerator has a multitude of uses.

Specs

Model number: TS097

Feature

External dimensions (H x W x D):  US: 34.0 in.  x 23.75 in. x 24.5 in.

Internal dimensions (H x W x D):  US: 23.5 in. x 17.5 in. x 17 in.

External clearance: < 1” on sides, 1” on rear

Volume: 4.6 ft3

Unit weight: 130 lbs

Operating temperature range: + 1 °C to + 10 °C

Temperature uniformity: +/- 1.5 °C

Door: Solid, Right hand hinge

Security mechanism: Electronic door lock

Access control: LF/HF

Refrigerant: R600a (SNAP)

Cooling method: Forced air cooled

Defrost type: Automatic

Communications

RFID Frequency:  US: 902 to 928 MHz

Connection: Ethernet, optional cellular

Electrical Requirements

Electrical power and frequency:  US: 120 VAC, 60 Hz, 2 A

Power consumption: 1.15kWhr/day

RFID battery backup: 12 VDC SLA, qty 2

Warranty

Lease: US – 36 months

Purchase: US – 36 months

Certifications: RAIN, SGS, Energy Star, RoHS, SNAP

Disclaimer: If you are outside of the US contact us for your regions’ specifications

Location Use
Downloads

One technology. Many applications.

Be it product or place, the Undercounter RFID Refrigerator has a multitude of uses.

Model number: TS097

Feature

External dimensions (H x W x D):  US: 34.0 in.  x 23.75 in. x 24.5 in.

Internal dimensions (H x W x D):  US: 23.5 in. x 17.5 in. x 17 in.

External clearance: < 1” on sides, 1” on rear

Volume: 4.6 ft3

Unit weight: 130 lbs

Operating temperature range: + 1 °C to + 10 °C

Temperature uniformity: +/- 1.5 °C

Door: Solid, Right hand hinge

Security mechanism: Electronic door lock

Access control: LF/HF

Refrigerant: R600a (SNAP)

Cooling method: Forced air cooled

Defrost type: Automatic

Communications

RFID Frequency:  US: 902 to 928 MHz

Connection: Ethernet, optional cellular

Electrical Requirements

Electrical power and frequency:  US: 120 VAC, 60 Hz, 2 A

Power consumption: 1.15kWhr/day

RFID battery backup: 12 VDC SLA, qty 2

Warranty

Lease: US – 36 months

Purchase: US – 36 months

Certifications: RAIN, SGS, Energy Star, RoHS, SNAP

Disclaimer: If you are outside of the US contact us for your regions’ specifications

Terso RFID circular tags for healthcare and life science inventory
Terso RFID circular tags for healthcare and life science inventory
Back to Basics
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
Our software
Seamless Integration with Jetstream

So, you know what device your workflow requires. Great! But how will the Undercounter RFID Refrigerator be able to communicate essential inventory information to end users? Well we’re glad you asked. The answer: with software. But not just any software, Jetstream, the simplest cloud-based platform for managing inventory. Jetstream allows for security and scalability to enable visibility of high-value inventory from anywhere at anytime possible.
