How it works

Comprehensive Inventory Management In 3 Simple Steps.

1 Secure Access

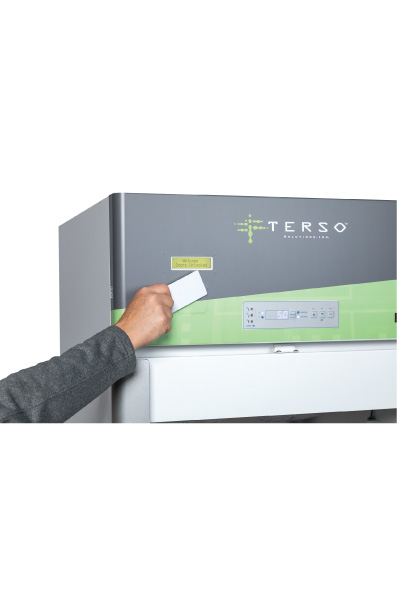

Once the desired items are properly tagged and placed in the Large RFID Refrigerator, pre-authorized users can access the enclosure by placing their badge to the pass reader.

Accessing RFID enclosure for inventory management
2 Real-time Tracking

Once the door to the enclosure is securely shut a scan of the inventory is performed. Whether the user adds or removes an item, the system automatically tracks the transaction in real-time.

real time tracking
3 Jetstream

This recorded transaction is then accessible via Jetstream, our cloud-based platform which can be easily integrated into existing ERP systems. Don’t have an inventory management platform of your own? No sweat. We got the one just for you. Check out Stratosphere and take your inventory to new heights.

RFID Software for Inventory Management for Medical Device Manufacturers.
Application

One technology. Many applications.

Be it product or place, the Large RFID Refrigerator has a multitude of uses.

  • Pharmaceuticals
  • Reagent storage
  • Tissue & biologics
  • Cardiovascular products
  • Orthopedic products
Specs

Model number: TS074

Component

External Dimensions:  US: 79”H x 30”W x 33”D

Internal Dimensions:  US: 58.3”H x 24.8”W x 24.3”D

External space required:  US: 87”H x 30”W x 66”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 20.2 ft3

Weight: 500 lbs

Cooling Method: Forced Air circulation

Access Control: LF badge

Communications

RAIN RFID Frequency:  US: 902 to 928 MHz

Ethernet, optional cellular or WiFi

Power

Electrical Power: 115 VAC, 60 Hz, 8 A

Power Consumption: 160 W max

Battery Backup: Up to 2hrs

Temperature

2°C to 10°C

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US contact us for your regions’ specifications

Location Use
Downloads

One technology. Many applications.

Be it product or place, the Large RFID Refrigerator has a multitude of uses.

  • Pharmaceuticals
  • Reagent storage
  • Tissue & biologics
  • Cardiovascular products
  • Orthopedic products

Model number: TS074

Component

External Dimensions:  US: 79”H x 30”W x 33”D

Internal Dimensions:  US: 58.3”H x 24.8”W x 24.3”D

External space required:  US: 87”H x 30”W x 66”D

  • Place 3” from back wall
  • Allow 21” for door clearance

Volume: 20.2 ft3

Weight: 500 lbs

Cooling Method: Forced Air circulation

Access Control: LF badge

Communications

RAIN RFID Frequency:  US: 902 to 928 MHz

Ethernet, optional cellular or WiFi

Power

Electrical Power: 115 VAC, 60 Hz, 8 A

Power Consumption: 160 W max

Battery Backup: Up to 2hrs

Temperature

2°C to 10°C

Warranty

Lease: 36 months

Purchase: 36 months

Certifications: RAIN, SGS, FCC, RoHS, IP41 Rated

Disclaimer: If you are outside of the US contact us for your regions’ specifications

Terso RFID tag for healthcare and life science inventory products
Terso RFID tag for healthcare and life science inventory products
BACK TO BASICS
RAIN RFID & Our Process

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.

Terso Solutions uses RAIN RFID technology to implement inventory management solutions for hospitals and laboratories

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
OUR SOFTWARE
Seamless Integration with Jetstream

Without a software platform, the Large RFID Refrigerator would not be able to communicate essential inventory information to end users. But don’t worry, we’ve got you covered with the simplest cloud-based platform for managing inventory- Jetstream. With Jetstream staying connected to high-value inventory from anywhere at anytime is possible thanks to the platform’s level of security and scalability. Because knowing now is possible and we’re here to help you make it a reality.

Jetstream the open-api, cloud-based software solution by Terso Solutions. Integrate any inventory management software directly to Terso's Suite of RFID hardware solutions through Jetstream
Doctor in OR hospital inventory management
Doctor in OR hospital inventory management
Case Study
Froedtert Hospital Finds Its Fix

Froedtert Hospital, in Milwaukee, WI, was looking to integrate an automated inventory management system to protect valuable tissues, implants and organs. With our RAIN-RFID enclosures and TrackCore Inc.’s inventory tracking software, Froedtert Hospital was able to eliminate manual tracking errors and achieve real-time inventory visibility.
