Comprehensive Inventory Management in 3 Simple Steps
Once the desired items are properly tagged and locate the RFID Directional Read Point near or within the doorway to confirm the LED status indicator light is solid yellow, indicating the device is on and ready to read RFID tags.
Next, simply take the products you need and walk through the doorway that the RFID Directional Read Point is located near/within. Whether RFID tagged products are leaving or re-entering the space this device is regulating, the system automatically tracks the transaction in real-time, recording what product is in hand and when it is entering or exiting.
This recorded encrypted transaction is then transferred via Jetstream, our cloud-based platform which can be easily integrated into your existing ERP systems and inventory management workflows. If you don’t currently have an inventory management system in place, we’ve got your back with Stratosphere– that platform that takes inventory to new heights.
One technology. Many applications.
Model number: TS087
Component
Dimensions: 18.75″L x 8.66″W x 3.45″H | EU: 476 L x 220 W x 88 H (mm)
Ceiling Mount Optional: Typical 2 ft x 2 ft (1052 mm x 1052 mm) ceiling tile
Weight (device only): 5.97 lbs. (2.7 kg) , 7.56 lbs. (3.4 kg) with VESA Plate
Coverage Area: 1000 ft2 per unit with Monza r6 based RFID tags (Rectanglular)
Operating Temperature: -20 to 50 °C (-4 to 122 °F)
Operating Humidity: 5 – 95% non-condensing
Communication
RFID Frequency: US: 902 – 928 MHz | EU: 864 to 868 MHz
Standard: RAIN RFID: EPCglobal UHF RFID Class 1 Gen2v2 / ISO 18000-63
Power
Power (PoE): IEEE 802.3af Power over Ethernet
Power DC: 24Vdc output, rated minimum 2.1A
Power Consumption: 7 W idle, 13.8 W typical
Certifications: RAIN, FCC, CE
Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications
- Hospitals
- Labs
- Dental offices
- Operating Rooms
- Stockrooms
- Supply rooms
- Medical device manufacturers and distributors
- Consignment inventory
One technology. Many applications.
Model number: TS087
Component
Dimensions: 18.75″L x 8.66″W x 3.45″H | EU: 476 L x 220 W x 88 H (mm)
Ceiling Mount Optional: Typical 2 ft x 2 ft (1052 mm x 1052 mm) ceiling tile
Weight (device only): 5.97 lbs. (2.7 kg) , 7.56 lbs. (3.4 kg) with VESA Plate
Coverage Area: 1000 ft2 per unit with Monza r6 based RFID tags (Rectanglular)
Operating Temperature: -20 to 50 °C (-4 to 122 °F)
Operating Humidity: 5 – 95% non-condensing
Communication
RFID Frequency: US: 902 – 928 MHz | EU: 864 to 868 MHz
Standard: RAIN RFID: EPCglobal UHF RFID Class 1 Gen2v2 / ISO 18000-63
Power
Power (PoE): IEEE 802.3af Power over Ethernet
Power DC: 24Vdc output, rated minimum 2.1A
Power Consumption: 7 W idle, 13.8 W typical
Certifications: RAIN, FCC, CE
Disclaimer: If you are outside of the US and EU contact us for your regions’ specifications
- Hospitals
- Labs
- Dental offices
- Operating Rooms
- Stockrooms
- Supply rooms
- Medical device manufacturers and distributors
- Consignment inventory
Whether an inventory management system is already in place or you’re looking to establish one, the beauty of RFID Read Points is that they can optimize that process and provide regulatory compliance by choosing one or using all of them together. We can help you determine the best combination for you.
These RFID Read Points can work seamlessly together to fully outfit a stockroom with RFID inventory management technology and ensure valuable inventory is visible from entry until the point of use.

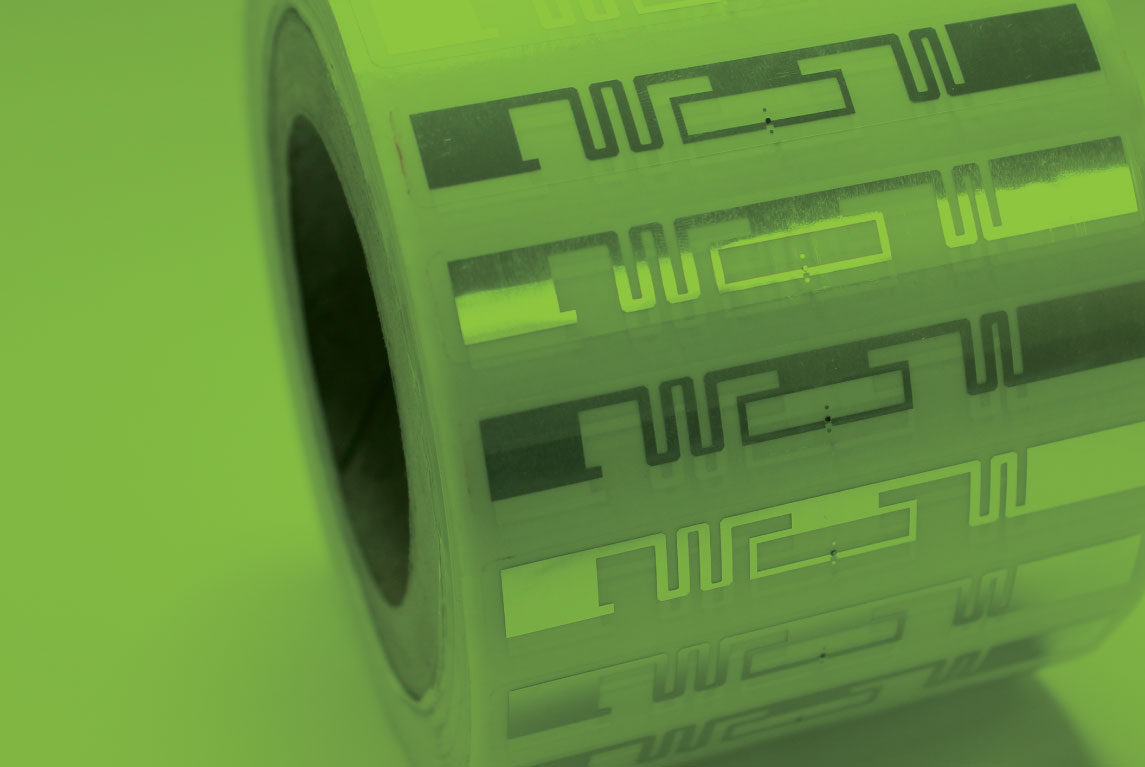

Ultra-High Frequency Radio Frequency Identification technology, also known as RAIN RFID, has an extremely high read range compared to both LF and HF RFID tags. This makes RAIN RFID the ideal solution when trying to track multiple products at one time, such as large boxes full of product that is passing through a space, or a cabinet full of inventory. Better understanding the technology enables you to make an informed decision and, should you decide to partner with us, the support doesn’t end here. From discovery to roll-out, we will be there every step of the way to ensure a successful implementation of this cutting-edge technology.
Without a software platform, the RFID Directional Read Point would not be able to communicate essential inventory information to end users. But don’t worry, we’ve got you covered. Jetstream, the simplest cloud-based platform for managing inventory allows for security and flexibility so that staying connected to inventory from anywhere at anytime is possible.
